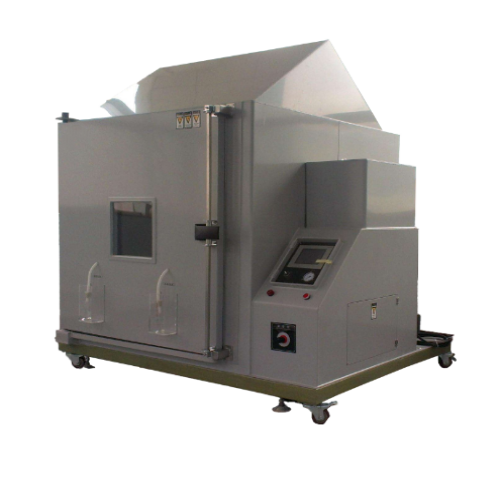

Toilet Corrosion Test Chamber (HCl and Ammonia)

Product Description:

Toilet seat hydrochloric acid and ammonia corrosion tester is used for testing to evaluate the ability of toilet seat products to provide adequate rust protection against detergents and urine. The test chamber by simulating ammonia components, hydrochloric acid solvent body, medium on the toilet electrical components or other inorganic cover layer in condensation conditions of corrosion test. The test chamber is electronic toilet sampling and testing of product quality supervision and inspection institute 3 testing organizations and toilet manufacturers of essential test equipment.

Conformity with standards:

GB/T 4706.53-2024

IEC 60335-2-84:2019

The conformity of the tested samples of toilet bowls is checked by the following tests:

The following tests are carried out on the samples of the toilet bowls, except for the case where the electrical components are closed or where it is not possible for them to be exposed to contaminated environments. The toilet samples shall be exposed to ammonia gas volume fraction of (0.055% by 0.005%) at room air pressure for 96 h. Then the toilet samples shall be exposed to hydrochloric acid volume fraction of (0.0005% by 0.0002%) at room air pressure for 96 h. The toilet samples shall not show any damages that lead to the non-compliance with the requirements of the GB/T 4706.53-2024 standard after the test.

Main parameters:

1. Inner box size: W1200×H1200×D1200mm

2. Outer box size: about W2350×H1700×D1500mm

3. Test temperature: room temperature

4. Ammonia concentration: 0.055%±0.005

5. Hydrochloric acid concentration: 0.0005%±0.0002

6. Test gas generation method: cylinder method

7. Test gas control: according to the test requirements using the volume ratio calculation, and then use the anticorrosive mass flow meter to control the flow rate

8. Sample test frame: Maximum load ≥50kg; placed vertically at 90°±2°.

9. Use of the environment and temperature: must be a clean room, no strong airflow, temperature 25 ℃ ± 2 ℃

10. Use of environmental humidity: <75% RH

11. Equipment power supply: AC 220V 50/60Hz

12. Installed power: 400W

Equipment equipped with:

1. Hydrochloric acid and ammonia corrosion test chamber 1 set

2. A set of exhaust gas filtering device

3. ammonia gas cylinder 1 bottle

4. Matching special pressure reducing valve 1pc

5.1 bottle of hydrochloric acid
